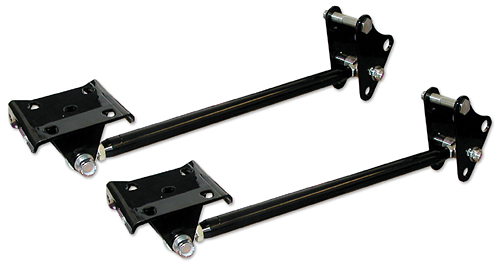

1967-72 Chevy Truck Cal Trac Traction Bar Kit, C10

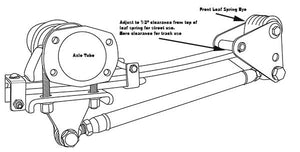

Our 1967-72 GM Truck Traction Bars were developed to achieve specific goals to improve high power traction while staying within hard set NHRA parameters. The combination of these components change the pushing point on the car by redirecting the turning action (spring wrap-up) of the rear axle through the #2 Force Transfer Link into the #1 Front Pivot. (See detailed image below). The Front Pivot Spring Stop resists this turning motion and also controls the bending of the leaf spring at it's thinnest section. The push into the Front Pivot helps the cars weight shift towards the rear of the car, because of new directed angle of force toward the front of the vehicle. (The 'Instant Center' moves further forward). This is where the system emulates a Four link system. The pinion angle is also maintained.
