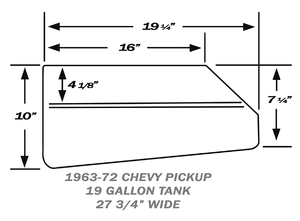

1963-72 Chevy Truck and GMC Truck, 19 Gallon Aluminum Fuel Tank Complete Kits

Lightweight aluminum gas tanks are designed to fit between the frame rail and rearward of the axle on 1963-72 Chevy and GMC trucks. By moving the fuel tank out of the cab, you gain much needed room to allow for further customization, also increases fuel capacity and safety. Made of heavy gauge aluminum, these gas tanks offer a light weight design and are fully baffled. Vent bung size is 1/4"NPT. Fuel feed bung size is 3/8"NPT.

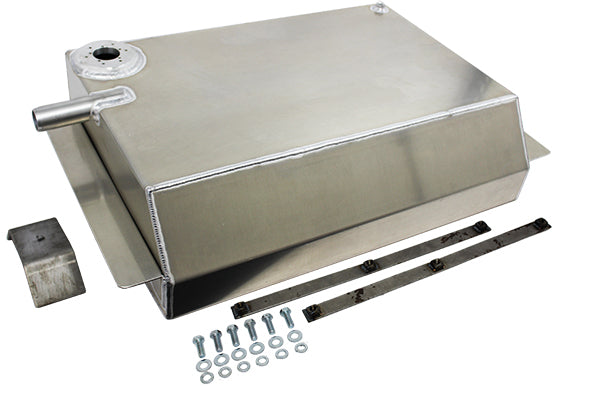

Includes:

• 19 Gallon aluminum fuel tank
• Mounting Straps
• Fuel Filler hose (4" for bed fill and 3 feet for side fill)

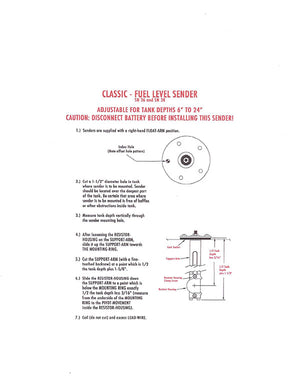

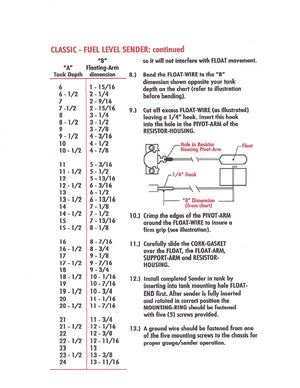

• Sending Unit
• Stainless Fuel Cap
• Available in bed or side fill

• Top Fitting (vent) - 1/4" Pipe

• Pick-up (bottom) Fitting - 3/8" Pipe

We offer the trap door style tank that comes with a chrome cap installed on it. Bed fill only. Add $40. For those running fuel injection we can add an extra fuel return line bung. Add $69

Product fits: 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971,19 72 Chevy and GMC trucks
